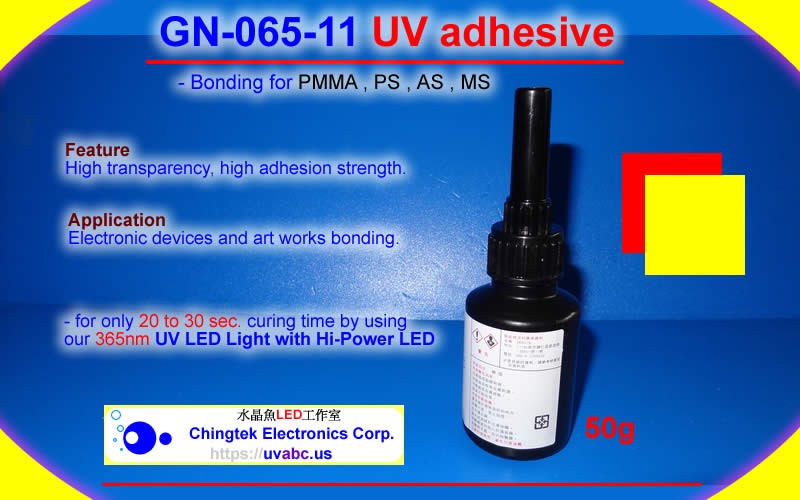

GN-065-11 UV adhesive
( Bonding for PMMA, PS, AS, MS. )


GN-065-11 UV adhesive(Bonding for PMMA, PS, AS, MS.) UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net


the Inquiry for UV LED of UV.chingtek.net

Product Description
GM-065-11 is photo-curing adhesive designed for the bonding of HIPS and PS plastics. This product can fast-cure and is transparent under the ultraviolet. This resin is an excellent Photo-curing adhesive and the adhesion strength is stronger than the original materials.

Characteristics

This product has toughness, shock resistance and thermal shock resistance.This product exhibits high adhesion strength. After fast-cure, the line of rubber is transparent and clear.


Physical Properties

Item

Specification

Test Method

Composition

Acrylic resin

Be judged by the composition

Chemical Class

Liquid @ 25oC

Eye inspection

Appearance

Colorless Liquid

Eye inspection

Viscosity, cps

3200~4800
25oC (S14, 100 rpm)

Brookfield RVDV-I+

Specific Gravity

1.0626 @ 25oC

Specific Gravity Cup

Refractive Index nD

1.4825 @ 25oC

ATAGO Abbe Refractometer NAR-1T

Application

Auto/ manual dispensing



Color Gardner Scale

1~2

Gardner Color Comparator

Solvent Content, %

0

Be judged by the composition

Heavy Metal Content

0

SGS Certificate


Cure Schedule

Light hardness condition
With the ultraviolet ray light source of the PHILIPS HPA400 S wave-length 365 nm。
Projecting light upon the energy accumulates to go to 1500~3000 mj/cm2 of hardening under condition.
UV accumulates energy form: Virtuous make Baier-UV/UV-RADCOL advanced.

Temporary curing time sec

5 ~ 10

Recommended curing time sec

10 ~ 15


Mechanical Properties

Item

Specification

Test Method

Durometer Hardness
Shore D

D62
25oC, RH60%

Durometer A type
ASTM D2240-03

Water Absorption
Ratio, %

2.68
25oC, 24hr

ASTM D570-95

Elongation
(25oC), %

107

GOTECH
GT-TS-2000-M

Adhesion strength
(Tensile mode)
Acrylic vs. Acrylic,
Kgf/cm2

50.4

GOTECH
GT-TS-2000-M

Glass Transition
Temp., ℃

-9

TA instrument
MDSCQ100

Temperature Range

-40~100oC




Mechanical Test

Item

Specimen
cm2

Maximum Strength
kgf

Bonding Strength kgf/cm2

Description of Material
Failure

GN600-11

1.09

53.91

49.58

Cohesive Failure

GN600-11

1.12

56.63

50.33

Cohesive Failure

GN600-11

1.10

57.76

52.51

Cohesive Failure

GN600-11

1.07

52.84

49.16

Cohesive Failure

Average Value

1.10

55.29

50.40




Storage and Shelf Life

This product should be kept without any possibility of light exposure. Replace lid immediately after use. This product has a one year minimum shelf life when stored in dark place below 14~34oC in original, unopened containers.


Caution

Some findings indicate a lack of potential for carcinogenicity with the compositions of this product by long term recurrent application to the skin. However, contact with skin is likely to produce mild transient reddening. It is important to remove adhesive from skin with soap and water thoroughly. This product is of moderate acute toxicity by swallowing. If swallowed, induce vomiting at once and call a physician. Avoid contact with eyes. In case of contact, flush with water for at least 15 minutes and get medical attention immediately. For specific information on this product, consult the Material Safety Data Sheet.


Remark:

The data contained in this bulletin is furnished for information only and is believed to be reliable. We cannot assume responsibility for results obtained by others over whose methods we have no control It is the user’s responsibility to determine suitability for the user’s purpose of any product or method mentioned herein and to adopt such precautions as may be advisable for the protection of property and persons against any hazards that may be involved in the handling and use thereof. We recommend that each prospective user test the proposed application before repetitive use, using the data as a guide.






---------------------------------------------------------- [ Accessories ] ----------------------------------------------------------


UV LED light with Hi-Power LED (UVA 400nm / 365nm )


UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net

UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net

----- Key Features -----

1.) with 1w Hi-Power LED made by listed company in Taiwan, Quality guarantee

2.) plus optical level Light Guide Plate, More wide lighting angle
  / Casing by Aluminium alloy ,more durable by good thermal dissipation

3.)

Compact size , Portable type ( size:15 X 2 x 3.2 cm ) , available for

  mobile power bank by USB port for outdoor use.

4.) Low temp. / Low power / Energy savings, Powered by USB 5V
  P.S Optional for USB 5V adapter ( available for 110 / 220 V )
.......USB 5V adapter for vehicle / cars ( available for 12 to 24 V )

5.) UVA 400nm ( 350mW ) / 365nm ( 120mW ),For Industrial Diagnostic & Inspection
  / Fluorescence check/ UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

6.) The Detector / Checker for COUNTERFEIT FAKE Money Bank Note /
  ID card / Passport / Security (finance)



UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net


Hi-Power UV LED light V.S. Traditional Mercury UV Tube
New LED-UV light
Traditional UV Tube
IPCE
85%
20%
Wavelengths

365 +-5nm
395 +-5nm
400 +-5nm

365~395nm + infrared ray
(heat source)
Life time
20,000 Hrs
2,000 Hrs
working temp.

55°C
lower temp with small heatsink

above 100°C
higher temp with larger heatsink

power
low Voltage / Current
(Energy saving/ safety)
Higher Voltage / Current
range of light

be customised

depend on the size of tube
energy
economic
relatively higher
pollution
Environmental Protection
mercury contamination



color

Note check

ID card check
Passport check
Fluorescence check
Photosensitive fiber
Photosensitive ink
UV adhesive
UV 400nm
purple
V
X
X
X
normal
normal
X
UV
365nm
white
V
V
V
V
colorful
colorful
V

the Inquiry for UV LED of UV.chingtek.net

Model no : UV-015-01W - 400K (length:15cm)
1. UV LED Light (1w 400nm LED) + Light Guide Plate
  ( with 170cm of USB power wire, optional for USB 5V adapter )
2. One year guarantee

Model no : UV-015-01W - 365K (length:15cm)
1. UV LED Light (1w 365nm LED) + Light Guide Plate
  ( with 170cm of USB power wire, optional for USB 5V adapter )
2. One year guarantee

Model no : UV-030-03W - 365K Extra (length:30cm)
UV-030-03W - 365 加長極致版 (長度:30公分) 1. UV LED Light (1w 365nm LED x 3 ) + Light Guide Plate
  ( with 170cm of AC power wire,MW c.c. mode adapter - for 110/220V )
2. One year guarantee

Accessories
USB 5V adapter ( available for 110/220V ) 1. USB 5V adapter ( available for 110/220V )
USB 5V adpter for vehicle / cars ( for 12 to 24 V ) 2. USB 5V adapter for vehicle / cars ( for 12 to 24 V )
additional online Switch ( 20 cm away from the LED ) 3. CK-SW001 additional Front Switch
CK-UV380 Anti- UV 365nm Safety goggles 4. CK-UV400 Anti- UV 400nm Safety goggles
( for 200nm - 400nm only )


  5. GM-055 UV adhesive 50g

    GM-055 UV adhesive1000g

     - Bonding for Glass to Glass / Glass to stainless steel and aluminum.
    Recommended exposure by 365nm

  6. GN-065-11 UV adhesive 50g

     - Bonding for PMMA , PS , AS , MS
    Recommended exposure by 365nm

  7. GG-8066-1 LOCA 55g
    GG-8066-1 LOCA 1000g
    - For LCM, Touch panel sensor, Cover glass lamination process products.
    Recommended exposure by 365nm


The spec. / user guide of GM-055 UV adhesive : http://uv.chingtek.net/products_04_1.htm
The spec. / user guide of GN-065-11 UV adhesive : http://uv.chingtek.net/products_04_2.htm
The spec. / user guide of GG-8066-1 LOCA : http://uv.chingtek.net/products_04_3.htm

the Inquiry for UV LED of UV.chingtek.net

p.s.
1.) Caution !! Do not look directly at the UV light , and please wear safety Goggles.


UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net
CK-ST001 - Anti- UV 365nm Safety goggles - UV LED light wiht Hi-Power LED (UVA 400nm / 365nm ) - UV.Chingtek.net

P.S. Welcome for requesting customized products
( wavelength 365nm to 400nm / higher power LED)
