5-1 UV LED Printing module/lamp - 150W for Standard UV ink System - 30m / min. (UVA 365nm-385nm )
5-2 UV LED Printing module/lamp - 306W  for Standard UV ink System - 30m to 80m / min. (UVA 365nm-385nm )
5-3 UV LED Printing module/lamp - 360W  for Standard UV ink System - 80m to 120m / min. (UVA 365nm-385nm )


UV LED Printing module/lamp

( 150W for Standard UV ink System )

UV LED Printing module/lamp - 150W for Standard UV ink System - 30m / min. (UVA 365nm-385nm )


         Key Features


  1. 150W High Power UV-LED (9S5P) made in Taiwan, Quality guarantee. also with Copper substrate for heat dissipation.

  2. with Multi-wavelength UV LED ( 365-385nm ), Special designed for standard UV printing system. ,to replace Mercury UV Lamps.

  3. Easy use for Linear UV light source.

  4. Drive currents: Im (A) - 4.5 (max.)

  5. Drive voltages: Vm (V) - 36 +/-2

  6. Irradiation range : 40 x 21(mm)

  7. Board Dimensions / Weight : 60 x 40 x 8.4 mm / 110 g

  8. Referance LED Light life time : 12000 hr(min.)

  9. Low temp. / Low power / Energy savings, ( available for 110 / 220 V ) with MeanWell c.c. mode adapter.

  10. Environmentally friendly: RoHS compliant, mercury-free.

  UV Irradiance for reference :

  1. UVA 365nm-385nm ( UV Irradiance : 5000 mW /cm2 (min.))
  2. p.s.measured by UV-DESIGN UV-Meter Silver Line, and the distance of test is 1 mm .

  Remark :

  1. LED Junction Temperature must be keeping lower than 80°C by air cooling or water cooling system.
  2. The printing speed is also depended on your designed unit, and the distance between UV LED to curing subject.




         Technology



  1. The Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

  2. with Copper substrate for heat dissipation.

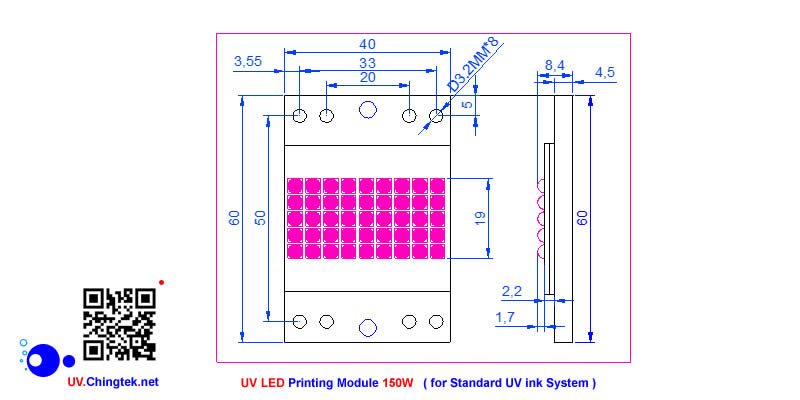

      Package Dimensions (mm)


UV LED Printing module/lamp - 150W for Standard UV ink System - 30m / min. (UVA 365nm-385nm )



         Specification


   Designed for standard UV ink System.


Model No.: UVA-150-365T385P

UV LED Printing module/lamp - 150W

1.150W UV LED module ( 365nm to 385nm LEDs x 9S5P )
   /with Copper substrate.
   /with wires
2.UV Irradiance: 5000 mW/cm2
3.for Standard UV ink System
-
Model No.: UVA-150-365T385P

UV LED Printing module/lamp - 150W

1.150W UV LED module ( 365nm to 385nm LEDs x 9S5P )
   /with Copper substrate.
   /with wires
2.UV Irradiance: 5000 mW/cm2
3.for Standard UV ink System
-





  P.S.

  1. Caution !! Do not look directly at the UV light , and please wear safety Goggles.

UV LED Printing module/lamp - 150W for Standard UV ink System - 30m / min. - UV.Chingtek.net

>>>    Click me for Inquiry !!    <<<



         Avaliable for Customization

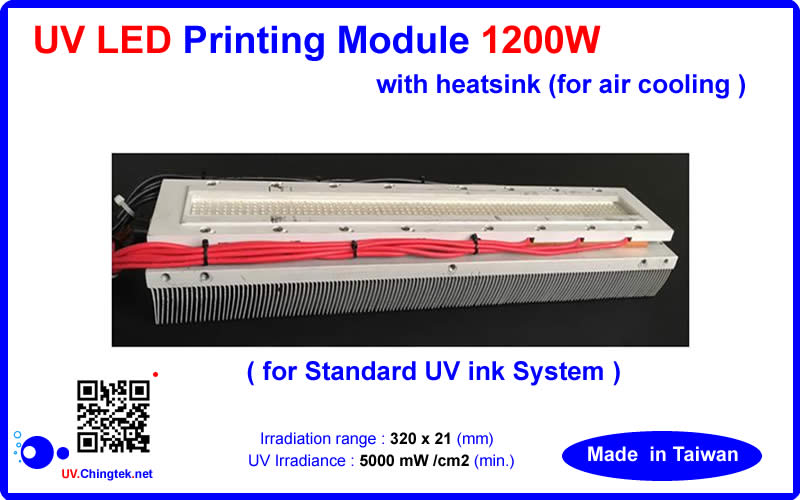

UV LED Printing Module 1200W with heatsink (for air cooling ) - 30m / min.

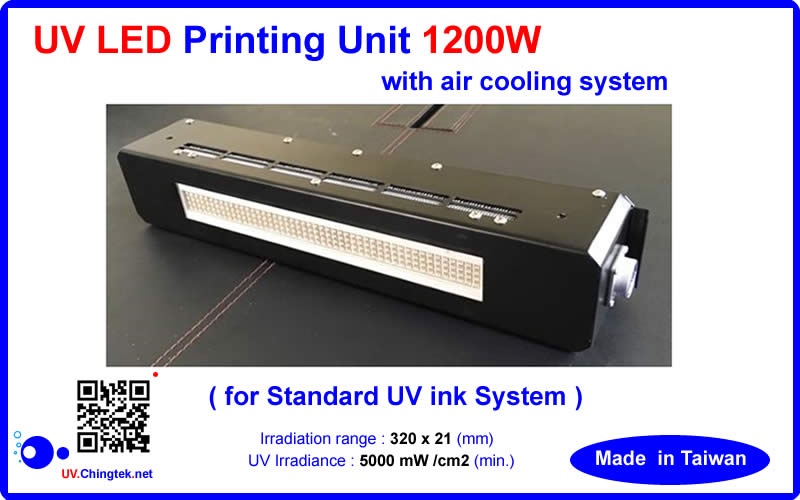

UV LED Printing unit 1200W with air cooling system - 30m / min.

Please contact us for the details !!




         Referance Information:


  Available for the standard UV ink of following brands :

  1. T&K TOKA (JP)
  2. TOYO INK (JP)
  3. DIC (JP)
  4. PANCOLOUR INK (TW)
  5. ColorValue Tech (TW)
  6. Melchers (DE)
  7. p.s. Already on Line testing with our customer in Taiwan, and also some of the customers are already using in official production lines.


  Available for the UV printing machine of following brands :

  1. Delongbo (TW)
  2. ORTHOTEC (TW)
  3. Miyakoshi (JP)
  4. Sanki Machinery (JP)
  5. Labelmen (TW)
  6. Labellong (TW)
  7. Da Shen Printing Machine (TW)
  8. Link Label Machinery (TW)
  9. p.s. Already on Line testing with our customer in Taiwan, and also some of the customers are already using in official production lines.



      Introduction of accessories
