         User's Manual

Ver.V1.0   Jul.2018

              Model no.: CK-ST007


Adjustable aluminium Holder


The Accessories for UV LED ultraviolet light Handheld module/lamp -  Adjustable aluminium Holder - model No.: CK-ST007 - User's Manual - UV.Chingtek.net


         Disclaimer


We reserve the right to update or modify this Agreement at any time without prior notice.

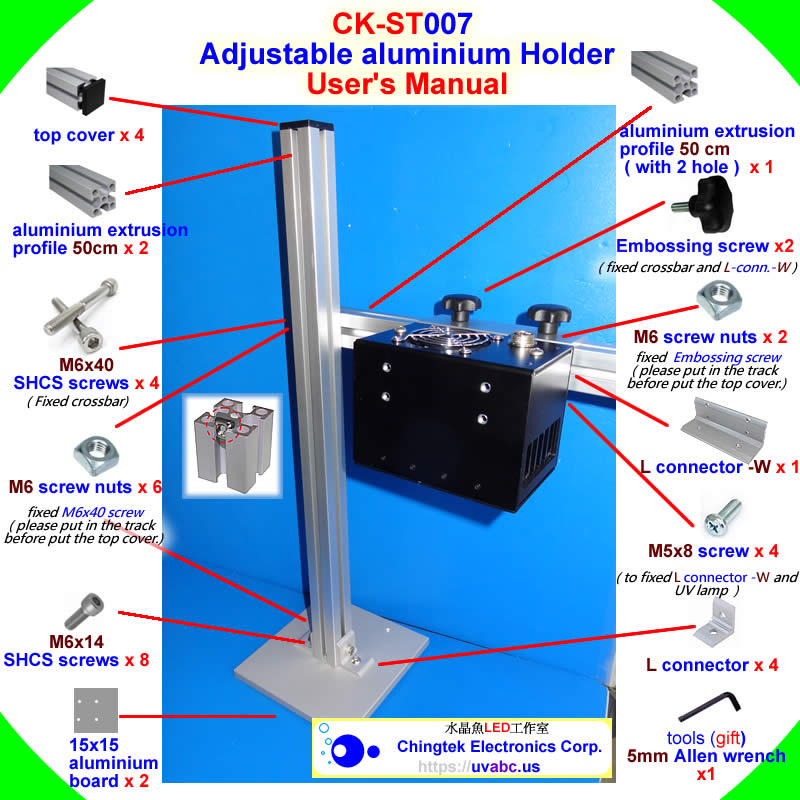

         Assembly Diagram


The Accessories for UV LED ultraviolet light Handheld module/lamp -  Adjustable aluminium Holder - model No.: CK-ST007 - User's Manual - UV.Chingtek.net


         Parts List



  1. aluminium extrusion profile (50cm) x 2

  2. aluminium extrusion profile (50cm, with 2 hole) x 1

  3. top cover x 4

  4. M6x14 SHCS screws x 2

  5. M6 screw nuts x 8

  6. M6x14 SHCS screws x 8

  7. 15x15 aluminium board x 2

  8. Embossing screw x 2

  9. M5x8 screw x 4

  10. L connector -W x 1

  11. L connector x 4

  12. 5mm Allen wrench x 1
