UV LED ultraviolet light Handheld module/lamp

( Industrial Pro. Nichia Series )

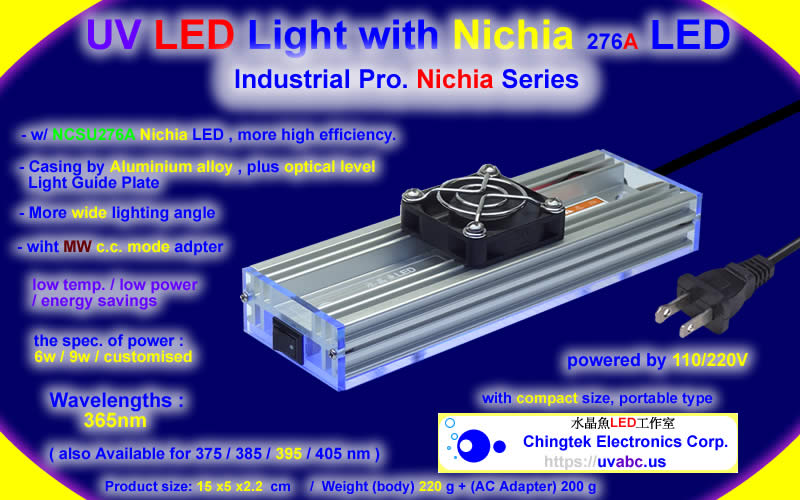

UV LED light Handheld module/lamp - Industrial Pro. Nichia Series  (UVA 365/375/385/395/405nm) For Conformal Coating / UV curing system / 3D printing / Fluorescence check / adhesive curing - Chingtek.net


         Key Features


  1. with 3W NCSU276A High Power UV-LED ultraviolet made by Nichia (Japan), Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 220 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  7. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  8. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  9. Available for Customization for different length (365/375/385/395/405nm) or Watt (power) .

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 200 mW /cm2 - 3W Nichia chip x 2 pcs )
  2. UVA 395nm ( UV Irradiance : 250 mW /cm2 - 3W Nichia chip x 2 pcs )
  3. p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .




         Technology


Technology - ultraviolet UV LED light module/lamp - Industrial Pro. Nichia Series  (UVA 365/375/385/395/405nm)



      Internal Structure

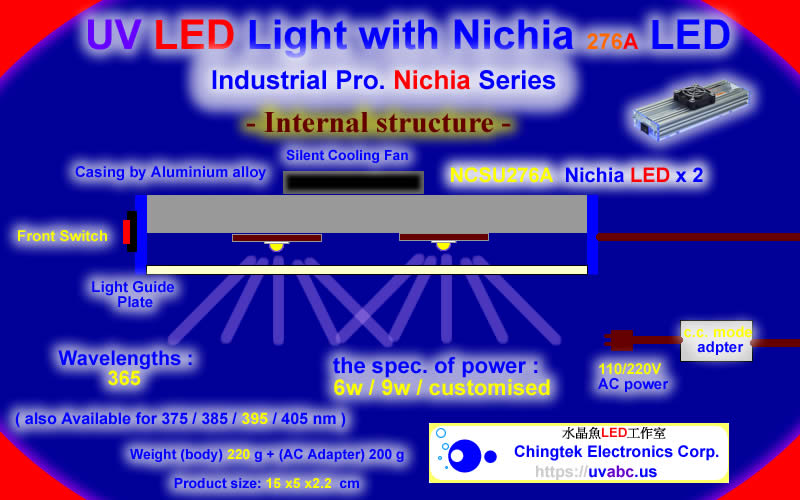

Internal Structure - UV LED ultraviolet light module/lamp - Industrial Pro. Nichia Series  (UVA 365/375/385/395/405nm)




      the Mobile Series


UV LED ultraviolet light module/lamp - Industrial Pro. Nichia mobile Series  (UVA 365/375/385/395/405nm)



         Specification


   Available for Customization for different length (365 / 375 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-015-06W-365N

Industrial Pro. Nichia Series - 6W UV LED

1.UV light(3W 365nm Nichia LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 15 cm
-
Model No.: UV-015-09W-365N

Industrial Pro. Nichia Series - 09W UV LED

1.UV light(3W 365nm Nichia LED x 3 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 280 mW/cm2
3.One year guarantee          Length: 15 cm
-

Model No.: UV-030-18W-365N

Industrial Pro. Nichia Series - 18W UV LED

1.UV light(3W 365nm Nichia LED x 6 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x2
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 280 mW/cm2
3.One year guarantee          Length: 30 cm
-
Model No.: UV-048-30W-365N

Industrial Pro. Nichia Series - 30W UV LED

1.UV light(3W 365nm Nichia LED x 10 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x3
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 280 mW/cm2
3.One year guarantee          Length: 48 cm
-

Model No.: UV-063-36W-365N

Industrial Pro. Nichia Series - 36W UV LED

1.UV light(3W 365nm Nichia LED x 12 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x4
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 280 mW/cm2
3.One year guarantee          Length: 63 cm
-
Customization Model No.: UV-xxx-yyW-365N

Industrial Pro. Nichia Series - 6W - 60W UV LED

1.Customization ( 3W 365nm Nichia LED ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 280 mW/cm2
3.One year guarantee          Length: 15 cm - 93 cm
-

Model No.: UV-015-06W-365Nb

Industrial Pro. Nichia mobile Series - 6W UV LED

1.UV light(3W 365nm Nichia LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.
Model No.: UV-015-06W-365Nb

Industrial Pro. Nichia mobile Series - 6W UV LED

1.UV light(3W 365nm Nichia LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 280nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for Industrial Pro. the U type Handle for Industrial Pro.

-
Model No.: CK-ST005
Adjustable Holder for Industrial Pro.
( Adjustable range : height for 0 ~ 25 cm )

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED light /module wiht High Power LED (UVA 365/385/395/405nm ) - Chingtek.net

>>>    Click me for sending Inquiry !!    <<<




UV LED ultraviolet light Handheld module/lamp

( Industrial Pro. Nichia 233A Series )

UV LED ultraviolet light Handheld module/lamp - Industrial Pro. Nichia 233A Series  (UVA 365/375/385/395/405nm) For Industrial Conformal Coating / UV curing system / 3D printing / Fluorescence check / adhesive curing - Chingtek.net


         Key Features


  1. with 6W NVSU233A High Power UV-LED ultraviolet made by Nichia (Japan), Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 220 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  7. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  8. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  9. Available for Customization for different length (365/385/395/405nm) or Watt (power) .

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 250 mW /cm2 - 6W Nichia chip x 2 pcs )
  2. UVA 405nm ( UV Irradiance : 300 mW /cm2 - 6W Nichia chip x 2 pcs )
  3. p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .




         Technology

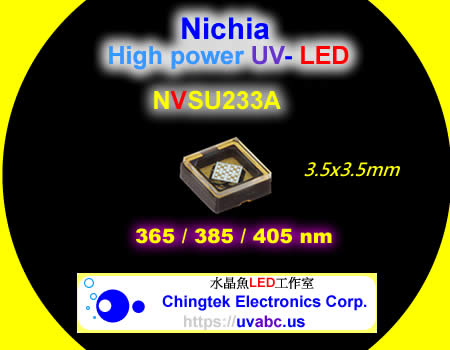

Technology - UV LED ultraviolet light module/lamp - Industrial Pro. Nichia 233A Series  (UVA 365/375/385/395/405nm)



      Internal Structure

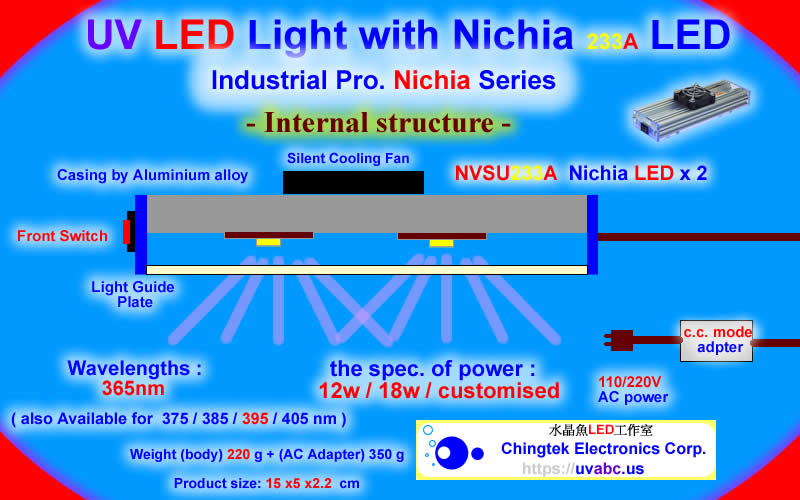

Internal Structure - UV LED ultraviolet light module/lamp - Industrial Pro. Nichia 233A Series  (UVA 365/375/385/395/405nm)



         Specification


   Available for Customization for different length (365 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-015-12W-365Na

Industrial Pro. Nichia 233A Series - 12W UV LED

1.UV light(6W 365nm Nichia LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 250 mW/cm2
3.One year guarantee          Length: 15 cm
-
Model No.: UV-030-30W-365Na

Industrial Pro. Nichia 233A Series - 30W UV LED

1.UV light(6W 365nm Nichia LED x 5 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x3
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 300 mW/cm2
3.One year guarantee          Length: 30 cm
-

Model No.: UV-048-48W-365Na

Industrial Pro. Nichia 233A Series - 36W UV LED

1.UV light(6W 365nm Nichia LED x 8 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x4
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 300 mW/cm2
3.One year guarantee          Length: 48 cm
-
Customization Model No.: UV-xxx-yyW-365Na

Industrial Pro. Nichia 233A Series - 12W - 120W UV LED

1.Customization ( 6W 365nm Nichia LED ) by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 300 mW/cm2
3.One year guarantee          Length: 15 cm - 93 cm
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED light /module wiht High Power LED (UVA 365/385/395/405nm ) - Chingtek.net

>>>    Click me for sending Inquiry !!    <<<



      Introduction of accessories


CK-ST005 Adjustable Holder for Industrial Pro.

> CK-ST005 Adjustable Holder for Industrial Pro.

the U type Handle for Industrial Pro.

the U type Handle for Industrial Pro.

CK-UV400 Anti-UV 400nm Safety goggles

CK-UV400 Anti-UV 400nm Safety goggles

CK-TC005 Adjustable Digital Timer

CK-TC005 Adjustable Digital Timer




      Application example


The testing for PCBA with Conformal Coating by UV LED ultraviolet light/lamp.

The testing for PCBA with Conformal Coating by UV LED ultraviolet light/lamp.

The testing for Fluorescence by UV LED ultraviolet light/lamp.

The testing for Fluorescence by UV LED ultraviolet light/lamp.
