Deep UV LED ultraviolet light Handheld module/lamp

( Industrial Pro. MIT Series )

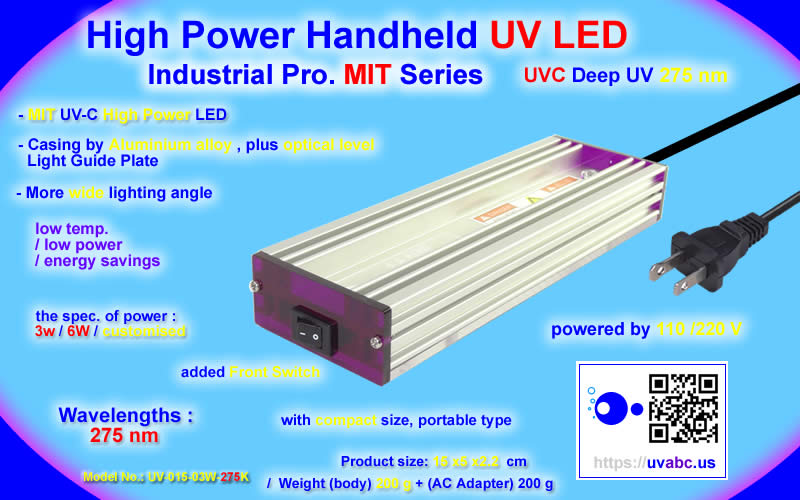

UVC deep UV LED ultraviolet light Handheld module/lamp - Industrial Pro. MIT Series  (UVC 275 nm) For disinfection/sterilization, protein analysis, DNA sequencing, drug discovery, optical Imaging and sensing of inks, dyes and markers. - Chingtek.net

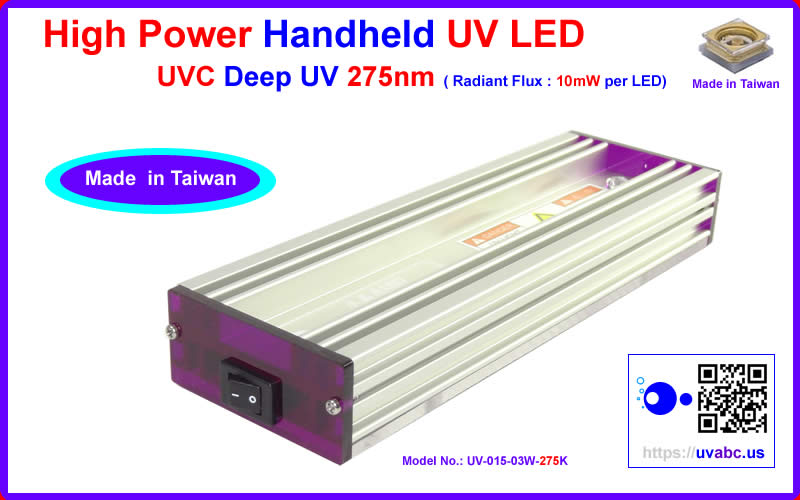

UVC deep UV LED ultraviolet light Handheld module/lamp - Industrial Pro. MIT Series  (UVC 275 nm) For disinfection/sterilization, protein analysis, DNA sequencing, drug discovery, optical Imaging and sensing of inks, dyes and markers. - Chingtek.net


         Key Features


  1. with 1W High Power UVC LED ultraviolet made by listed company in Taiwan, Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 200 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  6. For disinfection/sterilization, protein analysis, DNA sequencing, drug discovery, optical Imaging and sensing of inks, dyes and markers.

  7. Available for Customization for different length (275 nm) or Watt (power) .

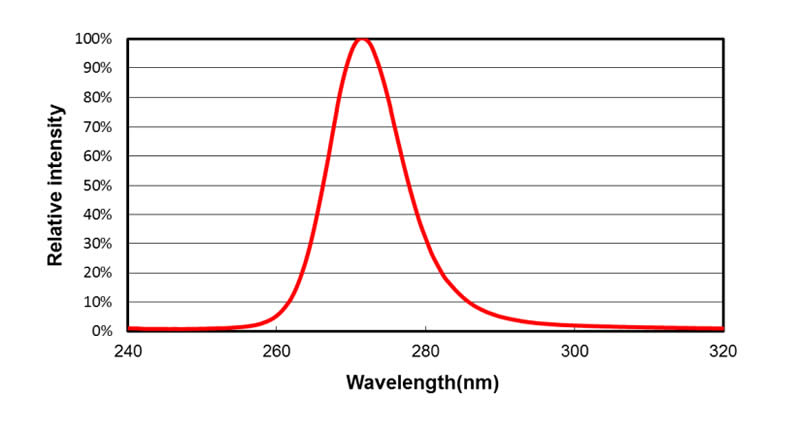

  UV Irradiance for reference :

  1. UVC 275nm ( UV Irradiance : 10 mW - 1W MIT chip )

UVC deep UV LED ultraviolet light Handheld module/lamp - Industrial Pro. MIT Series  (UVC 275 nm) For Industrial Diagnostic & Inspection / Fluorescence check - Chingtek.net

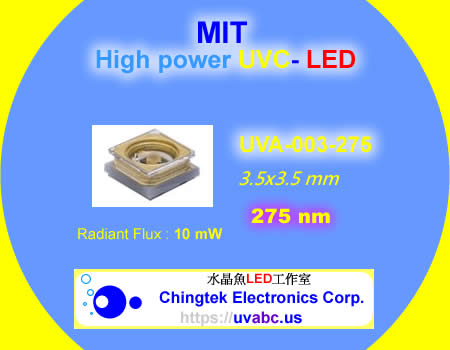

         Technology


Technology - UVC deep UV LED ultraviolet light Handheld module/lamp - Industrial Pro. MIT Series  (UVC 275 nm) For Industrial Diagnostic & Inspection / Fluorescence check - Chingtek.net

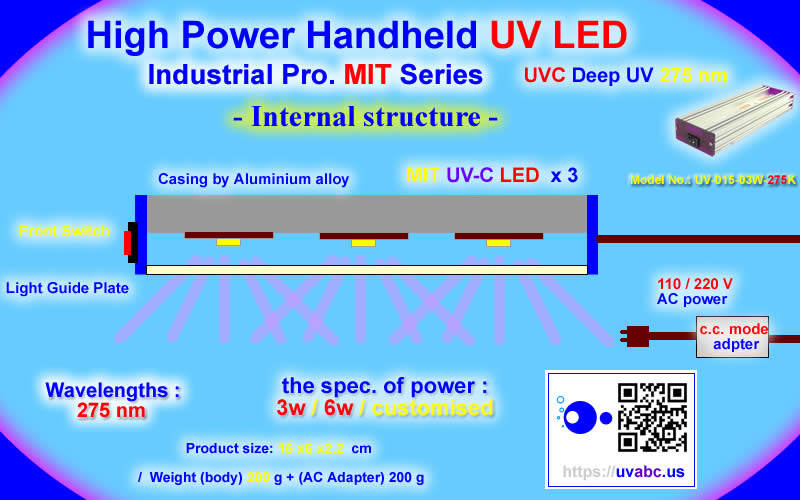

      Internal Structure


Internal Structure - UVC deep UV LED ultraviolet light Handheld module/lamp - Industrial Pro. MIT Series  (UVC 275 nm) For Industrial Diagnostic & Inspection / Fluorescence check - Chingtek.net



         Specification


   Available for Customization for different length (UVC 275 nm) or Watt (power)


Model No.: UV-015-03W-275K

Industrial Pro. MIT Series - 3W UVC LED

1.Deep UV light(1W 275nm LED x 3 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Radiant Flux: 10mW x 3
3.One year guarantee          Length: 15 cm
-
Model No.: UV-030-09W-275K

Industrial Pro. MIT Series - 9W UVC LED

1.Deep UV light(1W 275nm LED x 9 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Radiant Flux: 10mW x 9
3.One year guarantee          Length: 30 cm
-

Model No.: UV-048-12W-275K

Industrial Pro. MIT Series - 12W UVC LED

1.Deep UV light(1W 275nm LED x 12 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Radiant Flux: 10mW x 12
3.One year guarantee          Length: 48 cm
-
Model No.: UV-063-15W-275K

Industrial Pro. MIT Series - 15W UVC LED

1.Deep UV light(1W 275nm LED x 15 )
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.Radiant Flux: 10mW x 15
3.One year guarantee          Length: 63 cm
-



      Optional items


Model No.: CK-UV400A
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 200nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for Industrial Pro. the U type Handle for Industrial Pro.

-
Model No.: CK-ST005
Adjustable Holder for Industrial Pro.
( Adjustable range : height for 0 ~ 25 cm )

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.
