UV LED light ultraviolet module/lamp - Spotlight 60D (UVA 365/385/395/405nm ) with Air Cooling System-100W-For Industrial Diagnostic & Inspection / 3D printing / Flatbed Printer / Fluorescence check


         Key Features


  1. with100W / 200W COB packing High Power UV-LED ultraviolet made by listed company in Taiwan, Quality guarantee. also with Quartz glass to focus to 60 degree of angle, for more deep distance.

  2. plus0.2cm optical level Light Guide Plate by quartz glass.Casing by Aluminium alloy ,more durable by good thermal dissipation.Optional U type handle for better operation.

  3. Dimensions / Weight :UV-BOX (main body) 12.5 X 8 x 9 cm / 0.75 Kg

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  7. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  8. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 9.7 W /cm2 - 100W per COB chip )
  2. UVA 395nm ( UV Irradiance : 10.7 W /cm2 - 100W per COB chip )
  3. p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .

WD (mm)
UV-X12-100-365CS
UV-X12-100-395CS
60 degree beam Angle
10
9.7
10.7
20
5.3
5.83
30
3.0
3.36
40
1.9
2.12
50
1.3
1.45
60
1.0
1.11
70
0.7
0.78
80
0.6
0.66
90
0.5
0.55
100
0.4
0.45
W/cm2
W/cm2





         Technology


Technology - UV LED ultraviolet light module/lamp - Spotlight 60D (UVA 365/385/395/405nm )

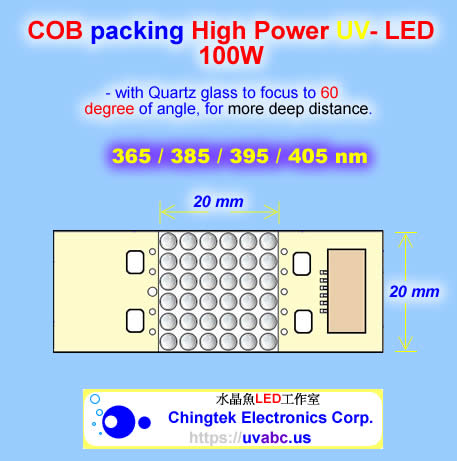

  1. The COB (Chip On Board) Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

  2. with Quartz glass to focus to 60 degree of angle, for more deep distance.

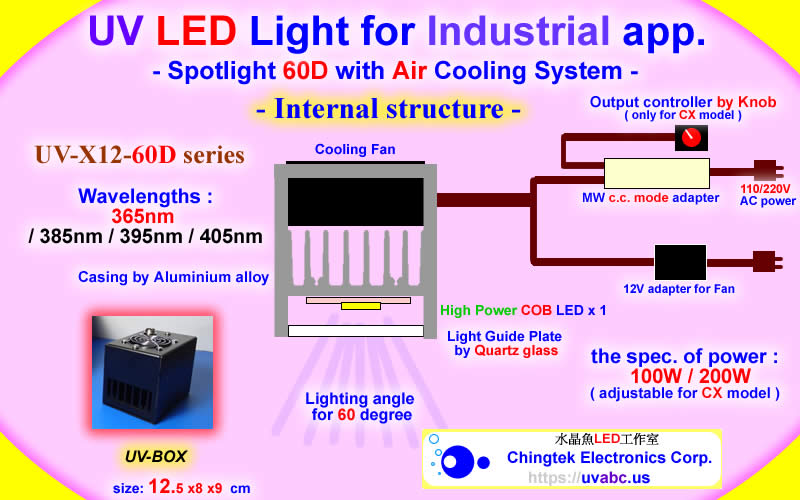

      Internal Structure


Internal Structure - UV LED ultraviolet light module/lamp - Spotlight 60D (UVA 365/385/395/405nm )



         Specification


   Available for Customization for different length (365 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-X12-100-365CS

Spotlight 60D - 100W Economic type

1.UV light(100W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 9.7W /cm2
3.One year guarantee
-
Model No.: UV-X12-100-365CX

Spotlight 60D - 100W Adjustable type

1.UV light(100W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 9.7W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X12-100-385CS

Spotlight 60D - 100W Economic type

1.UV light(100W 385nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 9.7W /cm2
3.One year guarantee
-
Model No.: UV-X12-100-385CX

Spotlight 60D - 100W Adjustable type

1.UV light(100W 385nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 9.7W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X12-100-395CS

Spotlight 60D - 100W Economic type

1.UV light(100W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 10.0W /cm2
3.One year guarantee
-
Model No.: UV-X12-100-395CX

Spotlight 60D - 100W Adjustable type

1.UV light(100W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 10.0W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X12-100-405CS

Spotlight 60D - 100W Economic type

1.UV light(100W 405nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 10.0W /cm2
3.One year guarantee
-
Model No.: UV-X12-100-405CX

Spotlight 60D - 100W Adjustable type

1.UV light(100W 405nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 10.0W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 280nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for UV-BOX the U type Handle for UV-BOX

-
Model No.: CK-ST007

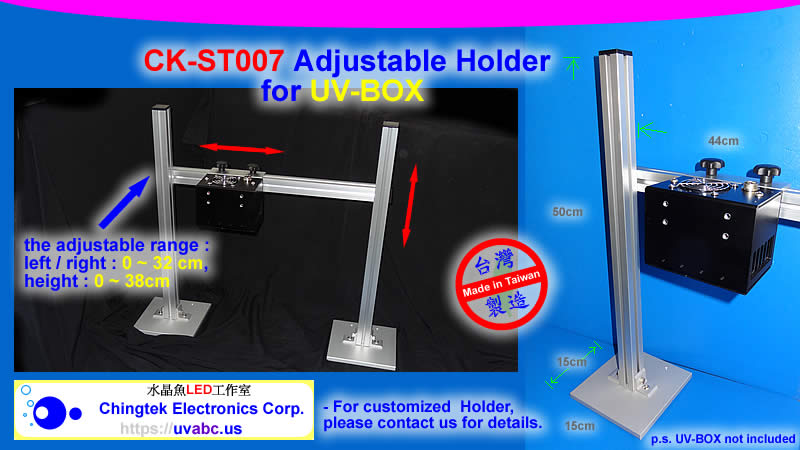

Adjustable Holder for UV-BOX
(the adjustable range : left / right 0 ~ 32 cm
/height for 0 ~ 38 cm,easy for examination)

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005

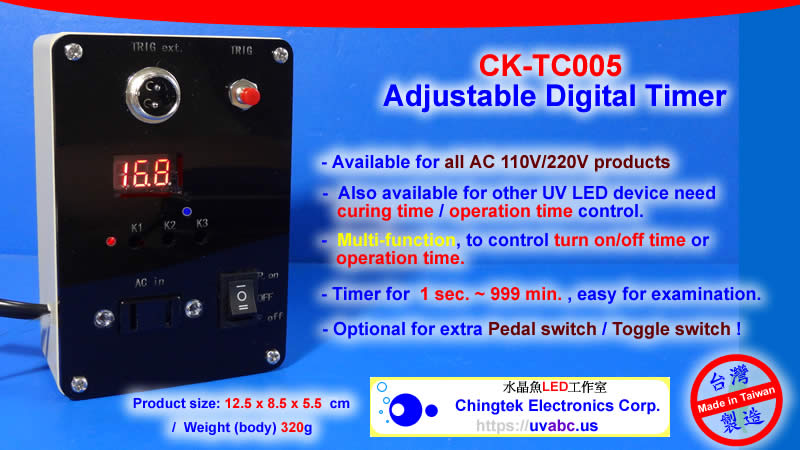

Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.
