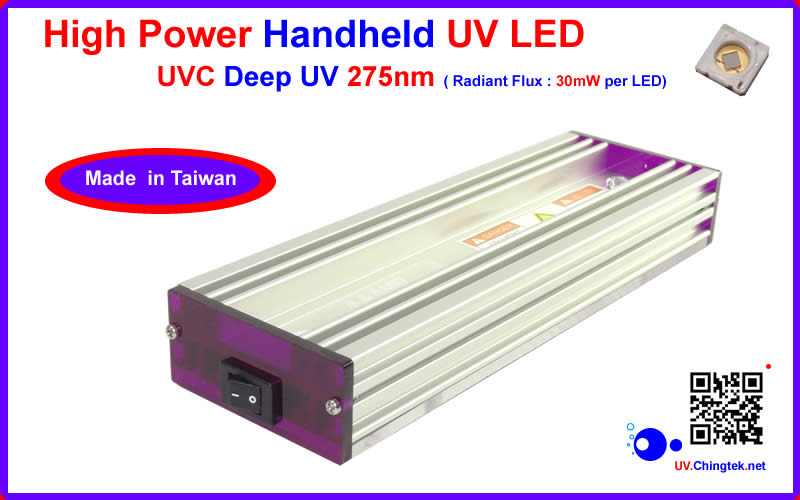

High Power Handheld UV LED Lamp Module

with UVC Deep UV LED 275nm ( Radiant Flux : 30mW per LED)

	----- Key Features -----

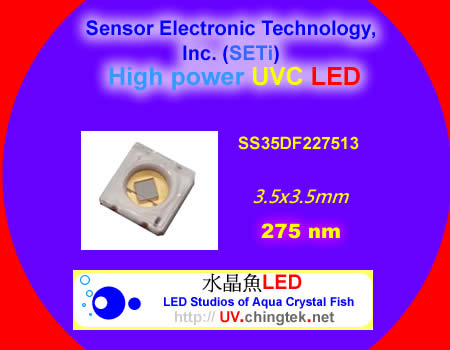

1.)	with 3w - SS35DF227513 High Power UVC LED made by SETi (USA)

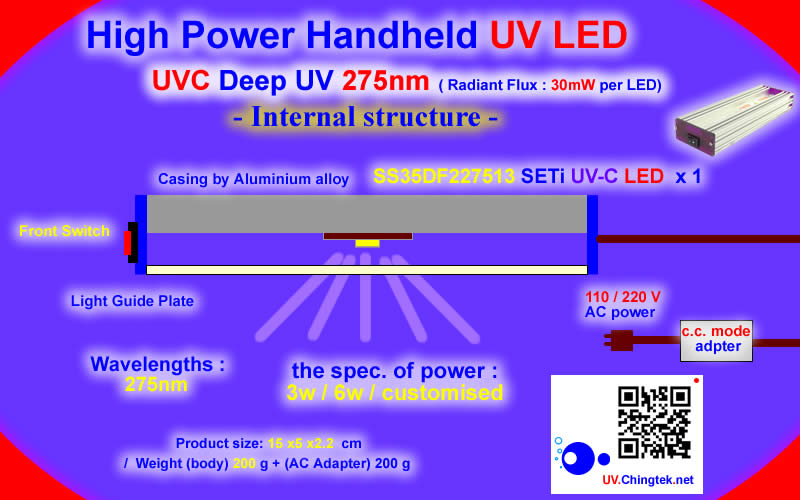

2.)	plus 0.3cm optical level Light Guide Plate, More wide lighting angle
	/ Casing by Aluminium alloy ,more durable by good thermal dissipation
	/ added Front Switch
3.)	Compact size , Portable type ( size¡G15 X 5 x 2.2 cm )
	/ ( Weight : (body) 200 g + (AC Adapter) 200 g )
4.)	Low temp. / Low power / Energy savings, ( available for 110 / 220 V )
	with MW c.c. mode adapter
5.)	275nm ( 30mW )¡AFor Industrial Diagnostic & Inspection
	/ Water purification / also for both chemistry and biology fields
6.)	Disinfection, Ozone Monitoring, Decontamination of surface and water Forensic Analysis, Protein analysis, DNA sequencing, Drug discovery, Optical sensing and Imaging of dyes, inks and markers and etc.
7.)	to be customized products for different length or Watt (power).

Hi-Power UV LED light V.S. Traditional Mercury UV Tube
	New LED-UV light	Traditional UV Tube
IPCE	85%	20%
Wavelengths	365 +-5nm 395 +-5nm 400 +-5nm	365~395nm + infrared ray (heat source)
Life time	20,000 Hrs	2,000 Hrs
working temp.	55¢XC lower temp with small heatsink	above 100¢XC higher temp with larger heatsink
power	low Voltage / Current (Energy saving/ safety)	Higher Voltage / Current
range of light	be customised	depend on the size of tube
energy	economic	relatively higher
pollution	Environmental Protection	mercury contamination

		Model no : UV-015-03W-275Se
	1.	Deep UV LED Light (3w 275nm LED x 1 ) ( Radiant Flux : 30mW)
		/ added Front Switch + Light Guide Plate
		( with 170cm of AC power wire, MW c.c. mode adapter - for 110 / 220 V )
	2.	One year guarantee
		Model no : UV-015-06W-275Se
	1.	Deep UV LED Light (3w 275nm LED x 2 ) ( Radiant Flux : 30mW x2)
		/ added Front Switch + Light Guide Plate + Silent Cooling FAN
		( with 170cm of AC power wire, MW c.c. mode adapter - for 110 / 220 V )
	2.	One year guarantee
customized		Model no : UV-xxx-yyW-275Se
	1.	customized Deep UV LED Light ( 3W 275nm LED )
		/ added Front Switch + Light Guide Plate + Silent Cooling FAN
		( the power - yy : 3W to 60W up / the length - xxx : 15cm to 156cm)
		( with 170cm of AC power wire, MW c.c. mode adapter - for 110 / 220 V )
	2.	One year guarantee
Accessories
	1.	CK-UV400 Anti- UV 400nm Safety goggles ( for 200nm - 400nm only )
	2.	CK-HD001 the Handle for Industrial Pro. Series
	3.	CK-ST005 Adjustable Holder for Industrial Pro. Series
		(can be adjusted from 0 cm ~ 25 cm, easy for examination )
		( User's Manual )
		p.s. If the length of the customized UV Light is more than 15 cm, you need to order 2 sets of holders to fixed them on both sides.

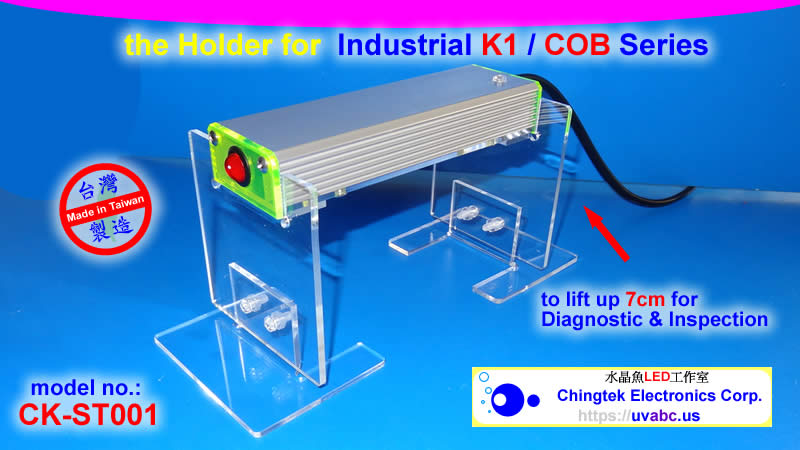

	4.	CK-ST001 the Holder for Industrial Pro. Series

p.s.

1.) Caution !! Do not look directly at the UV light , and please wear safety Goggles.

---------------------------------------------------------- [ Accessories ] ----------------------------------------------------------






P.S. Welcome for requesting customized products
( wavelength 265nm to 400nm / higher power LED)

-----------------------------------------------------------------------------
