UV LED ultraviolet Printing Units - 650mm / 1300mm up for Standard UV ink System (UVA 380nm-410nm )


         Key Features


  1. 650mm / 1300mm up UV LED Printing Units made in Taiwan, Quality guarantee.

  2. with 20-100% output intensity dimmable control.

  3. LED temperature, water temperature and water pressure monitoring and interlocking.

  4. UVLED system output intensity and printer speed synchronization.

  5. Programmable curing length.

  6. No infrared emissions.

  7. No UVB and UVC radiation.

  8. Total cost of ownership is lower than traditional lamp systems.

  9. Do not create ozone.

  10. Low temp. / Low power / Energy savings.

  11. Environmentally friendly: RoHS compliant, mercury-free.

  UV Irradiance for reference :

  1. UVA 380nm-410nm ( Peak irradiation at emission window : approx. 20 W /cm2 )
  2. p.s.Peak Irradiance refers to measurements with EIT UVICURE PLUS II in UVV program and/or UVA program at the emitting surface.

  Remark :

  1. LED Junction Temperature must be keeping lower than 80°C by air cooling or water cooling system.
  2. The printing speed is also depended on your designed unit, and the distance between UV LED to curing subject.

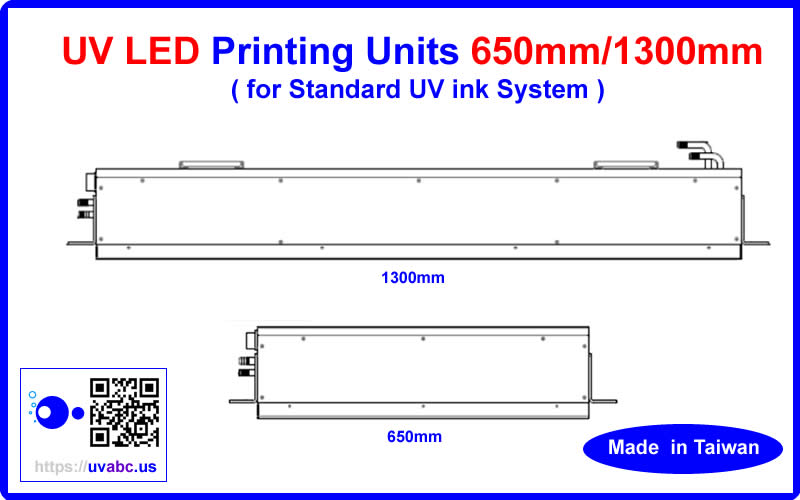

      Package Dimensions (mm)


UV LED ultraviolet Printing Unit 650mm with water cooling system - 30m / min. For Letterpress / Flexographic / Sheetfed Offset printing machine

UV LED ultraviolet Printing unit 1300mm with water cooling system - 80m / min. For Letterpress / Flexographic / Sheetfed Offset printing machine




         Specification


   Designed for standard UV ink System.

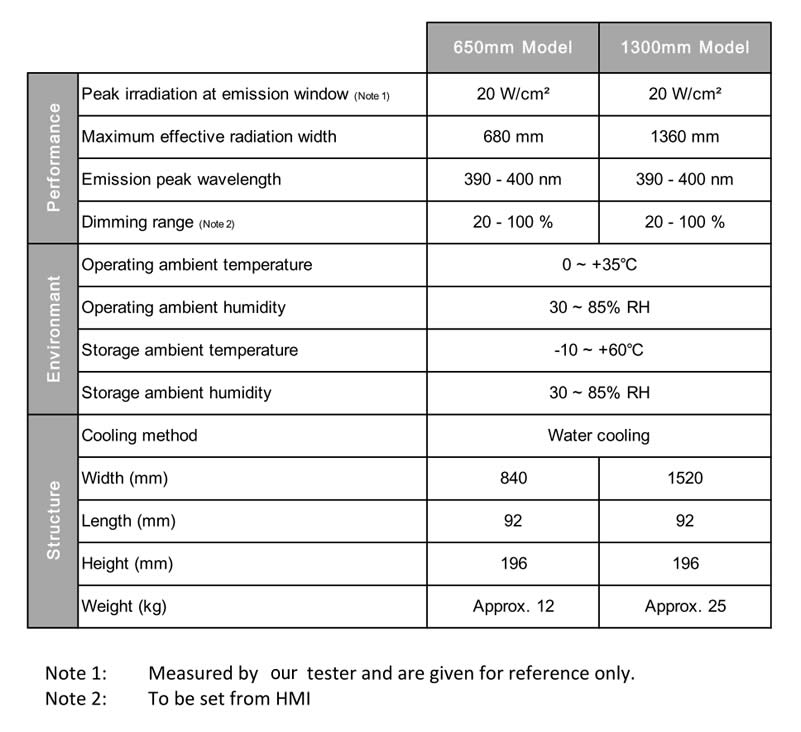

Specification for UV LED ultraviolet Printing Units - 650mm / 1300mm up for Standard UV ink System (UVA 380nm-410nm )





  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED ultraviolet Printing module/lamp - 270W for Standard UV ink System - 80m / min. - Chingtek.net

>>>    Click me for Inquiry !!    <<<



             SYSTEM SCHEMATICS

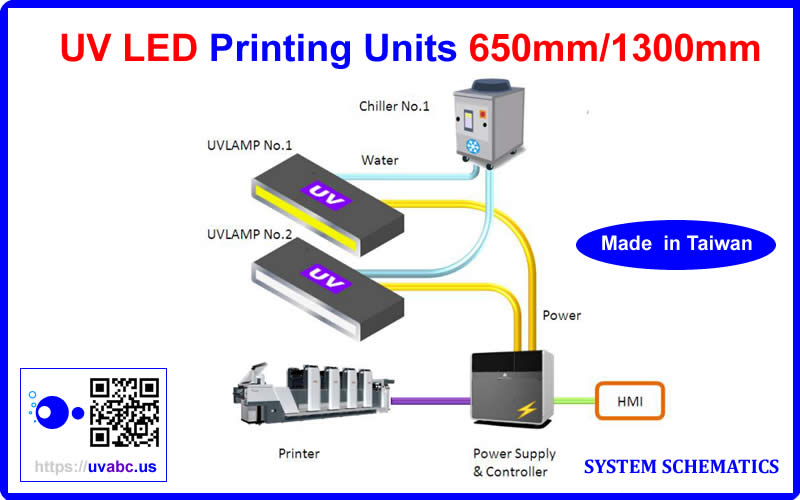

SYSTEM SCHEMATICS for UV LED ultraviolet Printing Units - 650mm / 1300mm up - Standard UV ink System (UVA 380nm-410nm ) For Letterpress / Flexographic / Sheetfed Offset printing machine

Please contact us for the details !!




      Introduction of accessories


CK-UV400 Anti-UV 400nm Safety goggles
