High Power UV LED module/lamp
( 48W / 96W / 144W Chip by Matrix - CBM series )
UVA 365nm - 405nm
Key Features
- Board dimension of 55mm x 20mm, Basic power 48W / 96W / 144W with fine heat dissipation.
- Environmentally friendly: mercury-free.
- Easy use for Linear UV light source.
- CBM 48W (1 set)- 365nm irradiation intensity 1000 mW/cm2 (3W chip x 16 pcs by Matrix )
- CBM 48W (1 set) -395nm irradiation intensity 1100 mW/cm2 (3W chip x 16 pcs by Matrix )
Easy use for Linear UV light source
How to install the UV LED unit into modules?
You must need:
1.) Air/Water cooling heat sink:
The lower temperature you maintain on the COB board,the more intensity power you can run up to, along with longer life span.
2.) UV LED power driver
It's better with dimming function, but must be constant current supply.
The Easiest installation Powerful High Power Board to Start UV LED Curing !
Technology
- The CBM (Chip By Matrix) LED package benefit from innovations in device technology, chip package and thermal management. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

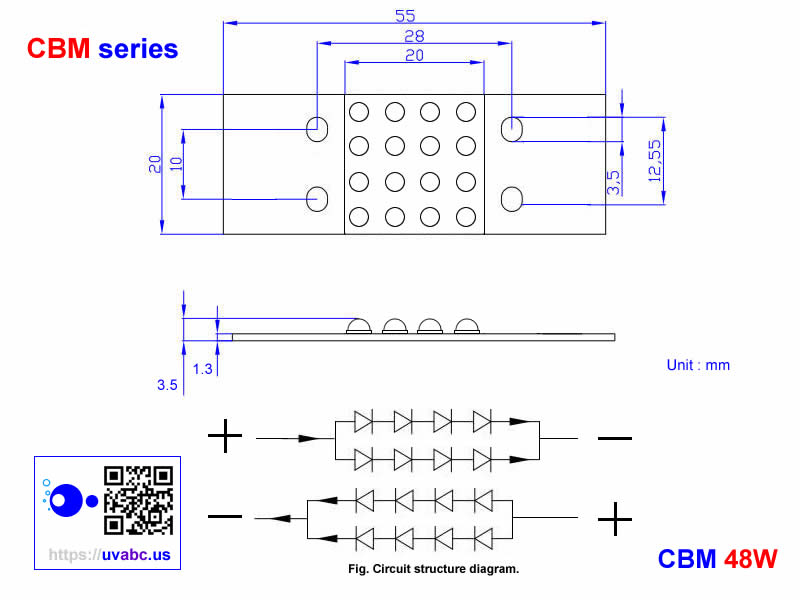

Package Dimensions (mm)
| 1.) |
LED Array : |
4s2p x2 |
| 2.) |
Typical Voltage: |
14V x2 |
| 3.) |
Operating Current: |
1400mA |
Notes: (1) All dimensions are in millimeters. (2) Tolerance is ±0.25mm
Ordering Information
Color |
Order Code |
Peak
Wavelength (nm) |
Light
Intensity (W/cm2
)@700mA x3
|
Min |
Max |
Min |
Max |
UV |
UVA-048-405C |
400 |
405 |
1.1 |
1.1 |
UVA-048-400C |
395 |
400 |
1.1 |
1.1 |
UVA-048-395C |
390 |
395 |
1.1 |
1.1 |
UVA-048-385C |
380 |
385 |
1.0 |
1.0 |
UVA-048-375C |
370 |
375 |
1.0 |
1.0 |
UVA-048-365C |
365 |
370 |
1.0 |
1.0 |
P.S.
- Caution !! Do not look directly at the UV light , and please wear safety Goggles.
