         User's Manual

Ver.V1.0   Jul.2018

              Model no.: CK-ST005


Adjustable aluminium Holder


The Accessories for UV LED ultraviolet light Handheld module/lamp -  Adjustable aluminium Holder - model No.: CK-ST005 - User's Manual - UV.Chingtek.net


         Disclaimer


We reserve the right to update or modify this Agreement at any time without prior notice.

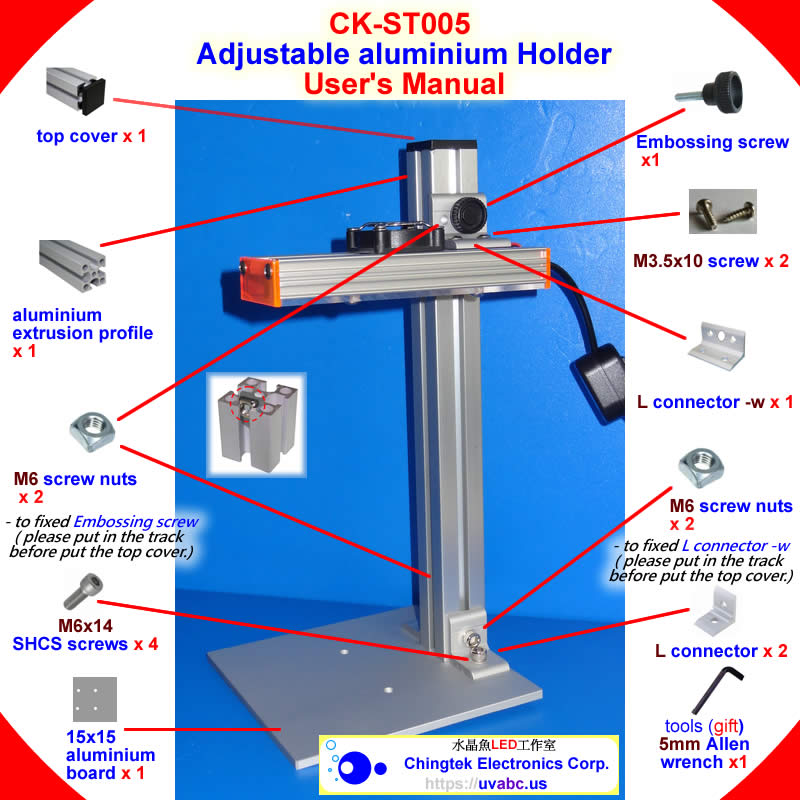

         Assembly Diagram


The Accessories for UV LED ultraviolet light Handheld module/lamp -  Adjustable aluminium Holder - model No.: CK-ST005 - User's Manual - UV.Chingtek.net


         Parts List



  1. aluminium extrusion profile (30cm) x 1

  2. top cover x 1

  3. M6 screw nuts x 4

  4. M6x14 SHCS screws x 4

  5. 15x15 aluminium board x 1

  6. Embossing screw x 1

  7. M3.5x10 screw x 2

  8. L connector -w x 1

  9. L connector x 2

  10. 5mm Allen wrench x 1
