UV LED light Handheld module/lamp - Industrial Pro. COB Series  (UVA 365/375/385/395/405nm) For Industrial Diagnostic & Inspection / UV curing system / 3D printing / Fluorescence check / adhesive curing - UV.Chingtek.net


         Key Features


  1. with 5W - 20W COB packing High Power UV-LED made by listed company in Taiwan, Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 220 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  7. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  8. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  9. Avaliable for Customization for different length (365/375/385/395/405nm) or Watt (power) .

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 200 mW /cm2 - 20W chip x 1 pcs )
  2. UVA 395nm ( UV Irradiance : 250 mW /cm2 - 20W chip x 1 pcs )
  3. p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .




         Technology

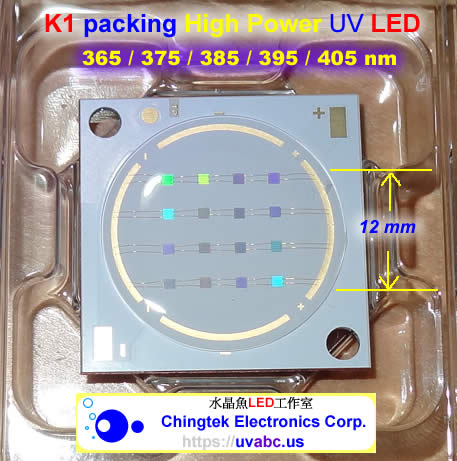

Technology - UV LED light module/lamp - Industrial Pro. COB Series  (UVA 365/375/385/395/405nm)

  1. The COB (Chip On Board) Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

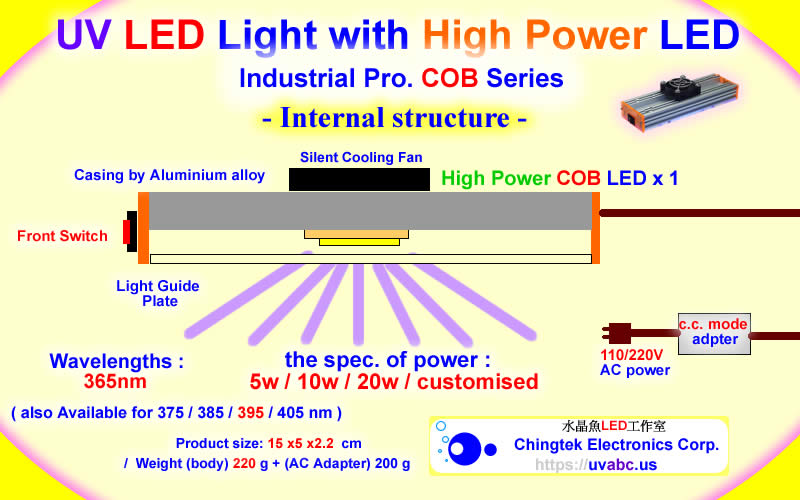

      Internal Structure


Internal Structure - UV LED light module/lamp - Industrial Pro. COB Series  (UVA 365/375/385/395/405nm)



         Specification


   Avaliable for Customization for different length (365 / 375 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-015-05W-365C

Industrial Pro. COB Series - 5W UV LED

1.UV light(5W 365nm COB LED x 1 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 60 mW/cm2
3.One year guarantee          Length: 15 cm
-
Model No.: UV-015-10W-365C

Industrial Pro. COB Series - 10W UV LED

1.UV light(10W 365nm COB LED x 1 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 120 mW/cm2
3.One year guarantee          Length: 15 cm
-

Model No.: UV-015-20W-365C

Industrial Pro. COB Series - 20W UV LED

1.UV light(20W 365nm COB LED x 1 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 15 cm
-
Customization Model No.: UV-030-40W-365C

Industrial Pro. COB Series - 40W UV LED

1.UV light( 20W 365nm COB LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate + Cooling FAN x2
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 200 mW/cm2
3.One year guarantee          Length: 30 cm
-



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 200nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for Industrial Pro. the U type Handle for Industrial Pro.

-
Model No.: CK-ST005
Adjustable Holder for Industrial Pro.
( Adjustable range : height for 0 ~ 25 cm )

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV light , and please wear safety Goggles.

UV LED light /module wiht High Power LED (UVA 365/385/395/405nm ) - UV.Chingtek.net
