UV LED Light Module/Lamp

UV-X06 Series ( with Water Cooling System )

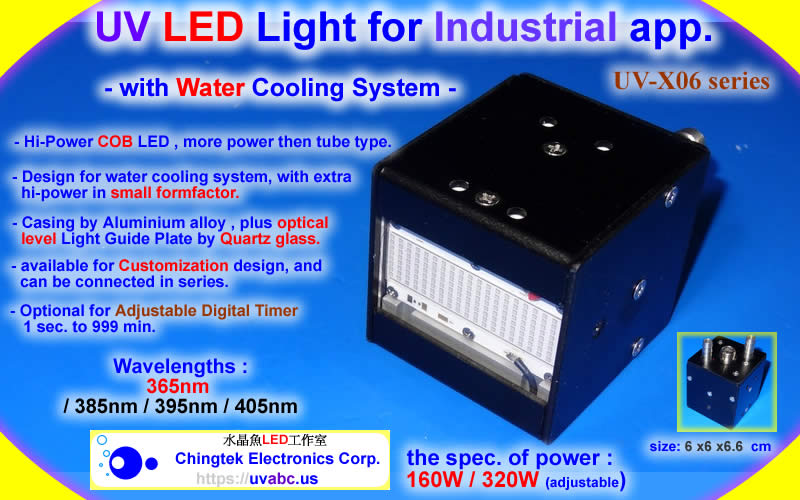

UV LED light module/lamp 160/320W - UV-X06 Series (UVA 365/385/395/405nm ) with Water Cooling System For Industrial Diagnostic & Inspection / 3D printing / Flatbed Printer / Fluorescence check


         Key Features


  1. with160W / 320W COB packing High Power UV-LED made by listed company in Taiwan, Quality guarantee.

  2. plus0.2cm optical level Light Guide Plate by quartz glass.Casing by Aluminium alloy ,more durable by good thermal dissipation.

  3. Dimensions / Weight :
                UV-BOX   (main body) 6 X 6 x 6.6 cm / 0.52 Kg
                160W   Power Module - 228 X 68 x 69 mm / 1.6 Kg
                320W   Power Module - 252 X 90 x 44 mm / 2.3 Kg

  4. The specification request of Chiller (not included ) :
                4.1)   Cooling Capacity: 400W up
                4.2)   Temperature Control: 15°C - 40°C ( setting below 30°C )
                4.3)   Process Flow: 7 L / min.
                4.4)   Water pipe diameter: 1/4PT

  5. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  6. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  7. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  8. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  9. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 2.0 W /cm2 - 160W per COB chip )
  2. UVA 365nm ( UV Irradiance : 4.0 W /cm2 - 160W per COB chip )
  3. UVA 395nm ( UV Irradiance : 5.5 W /cm2 - 320W per COB chip )
  4. UVA 395nm ( UV Irradiance : 8.0 W /cm2 - 320W per COB chip )
  5. p.s.measured by DYMAX ACCU-CAL 50-LED Meter, and the distance of test is 10 mm .




         Technology


Technology - UV LED light module/lamp 160/320W - UV-X06 Series (UVA 365/385/395/405nm ) with Water Cooling System For Industrial Diagnostic & Inspection / 3D printing / Flatbed Printer / Fluorescence check

  1. The COB (Chip On Board) Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

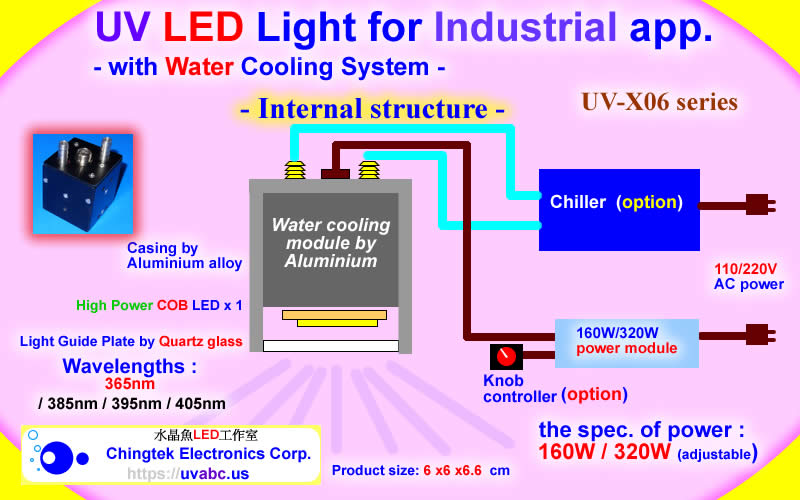

      Internal Structure


Internal Structure - UV LED light module/lamp 160/320W - UV-X06 Series (UVA 365/385/395/405nm ) with Water Cooling System For Industrial Diagnostic & Inspection / 3D printing / Flatbed Printer / Fluorescence check



         Specification


   Avaliable for Customization for different length (365 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-X06-160-365G2-CS

UV-X06 series - 160W Economic type

1.UV light(160W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 2.0 W /cm2
3.One year guarantee
-
Model No.: UV-X06-160-365G2-CX

UV-X06 series - 160W Adjustable type

1.UV light(160W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 2.0 W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X06-320-365G2-CS

UV-X06 series - 320W Economic type

1.UV light(320W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 4.0 W /cm2
3.One year guarantee
-
Model No.: UV-X06-320-365G2-CX

UV-X06 series - 320W Adjustable type

1.UV light(320W 365nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 4.0 W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X06-160-395G2-CS

UV-X06 series - 160W Economic type

1.UV light(160W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 5.5 W /cm2
3.One year guarantee
-
Model No.: UV-X06-160-395G2-CX

UV-X06 series - 160W Adjustable type

1.UV light(160W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 5.5 W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-

Model No.: UV-X06-320-395G2-CS

UV-X06 series - 320W Economic type

1.UV light(320W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 8.0 W /cm2
3.One year guarantee
-
Model No.: UV-X06-320-395G2-CX

UV-X06 series - 320W Adjustable type

1.UV light(320W 395nm LED x 1 ) Casing by AL-alloy
   /Power module (110/220V, w/ 170cm of AC wire)
   /FAN and LED w/ 200cm of DC/control wire
2.UV Irradiance: 8.0 W /cm2 (Adjustable 10% to 100%)
3.One year guarantee
-



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 200nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for UV-BOX the U type Handle for UV-BOX

not available
Model No.: CK-ST007
Adjustable Holder for UV-BOX
(the adjustable range : left / right 0 ~ 32 cm
/height for 0 ~ 38 cm,easy for examination)
p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV light , and please wear safety Goggles.

UV LED light /module wiht High Power LED (UVA 365/385/395/405nm ) - UV.Chingtek.net

>>>    Click me for sending Inquiry !!    <<<



      Introduction of accessories


CK-ST007 Adjustable Holder for UV-BOX

CK-ST007 Adjustable Holder for UV-BOX

CK-UV400 Anti-UV 400nm Safety goggles

CK-UV400 Anti-UV 400nm Safety goggles

CK-TC005 Adjustable Digital Timer

CK-TC005 Adjustable Digital Timer



Chingtek UV LED light module/lamp 160/320W - UV-X06 Series (UVA 365/385/395/405nm ) UV LED light module/lamp 160/320W - UV-X06 Series (UVA 365/385/395/405nm ) with Water Cooling System -For Industrial Diagnostic & Inspection / 3D printing / Flatbed Printer / Fluorescence check Product #: UV-X06-160-365G2-CX
