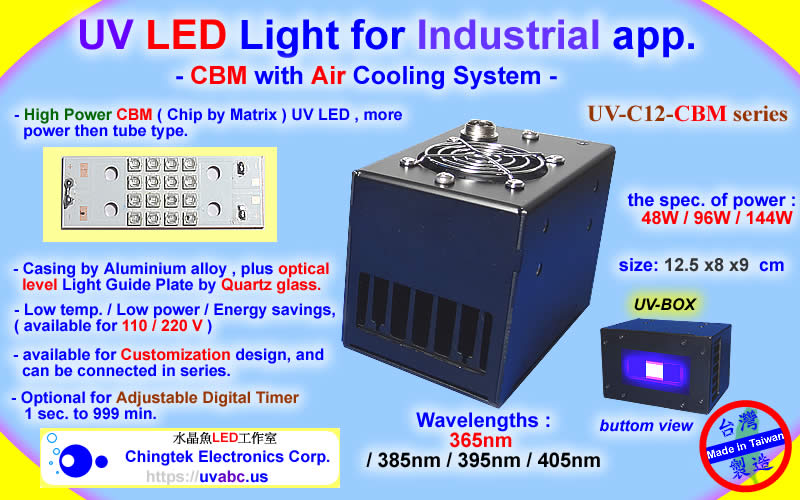

with 48W - 144W CBM (Chip By Matrix) packing High Power UV-LED ultraviolet made by listed company in Taiwan, Quality guarantee.

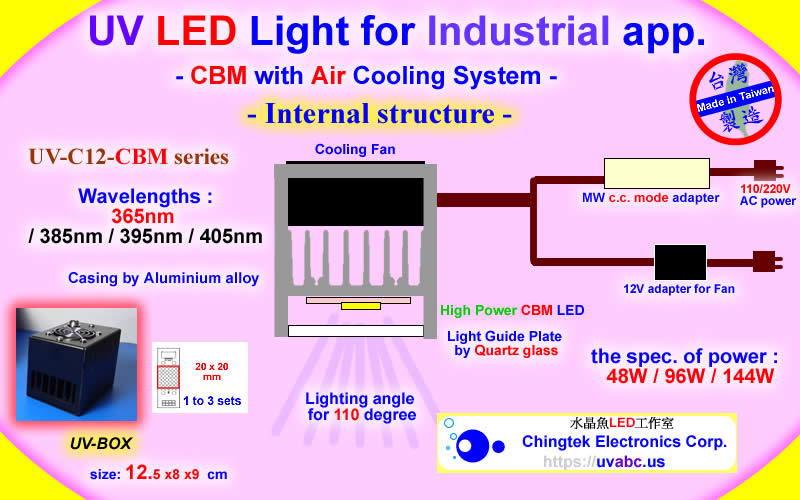

plus 0.2cm optical level Light Guide Plate by quartz glass.Casing by Aluminium alloy ,more durable by good thermal dissipation.Optional U type handle for better operation.




Dimensions / Weight :UV-BOX (main body) 12.5 X 8 x 9 cm / 0.75 Kg




Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )




Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )




Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter




For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing




The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  UV Irradiance for reference :

UVA 365nm ( UV Irradiance : 1000 mW /cm2 - 3W chip x 16 pcs by Matrix )

UVA 395nm ( UV Irradiance : 1100 mW /cm2 - 3W chip x 16 pcs by Matrix )

p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .

         Technology

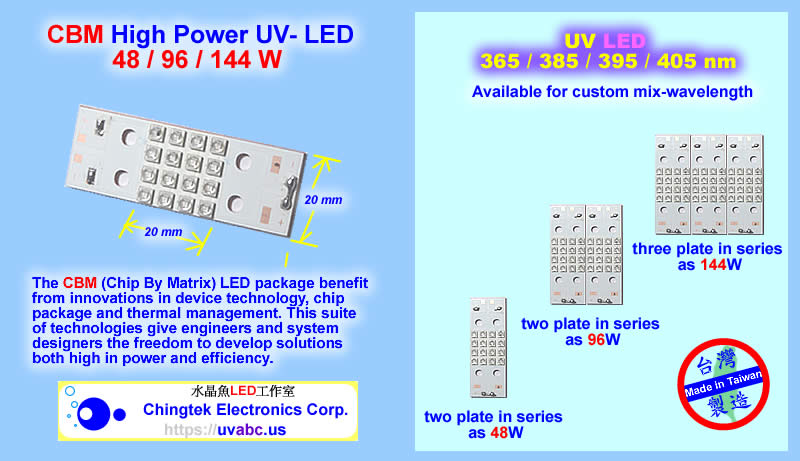

The CBM (Chip By Matrix) LED package benefit from innovations in device technology, chip package and thermal management. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.

         Specification

   Available for Customization for different length (365 / 385 / 395 / 405nm) or Watt (power)

Model No.: UV-C12-048-365Cm
CBM series with air cooling - 48W
	1.UV light(3W 365nm x 16 by Matrix ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 1000 mW /cm2 3.One year guarantee
	-

Model No.: UV-C12-096-365Cm
CBM series with air cooling - 96W
	1.UV light(3W 365nm x16x2 by Matrix ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 1800 mW /cm2 3.One year guarantee
	-

Model No.: UV-C12-144-365Cm
CBM series with air cooling - 144W
	1.UV light(3W 365nm x16x3 by Matrix ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 2400 mW /cm2 3.One year guarantee
	-

Customization Model No.: UV-C12-048-xxxCm
CBM series with air cooling - 48W
	1.UV light(3W mix-LED x 16 by Matrix ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 1000 mW /cm2 3.One year guarantee
	-

      Optional items

Model No.: CK-UV400
Anti-UV Safety goggles
	Anti-UV 400nm Safety goggles ( for UV 280nm - 400nm only )
	-

Model No.: CK-HD001
U type Handle
	the U type Handle for UV-BOX
	-

Model No.: CK-ST007
Adjustable Holder for UV-BOX
	(the adjustable range : left / right 0 ~ 32 cm /height for 0 ~ 38 cm,easy for examination) ( User's Manual ) p.s. Available For customized Holder.
	-

Model No.: CK-TC005
Adjustable Digital Timer
	1 sec. to 999 min./ size:12.5X8.5x4.5cm ( User's Manual ) p.s. Optional for extra Pedal switch / Toggle switch
	-

Model No.: CK-TC005-PS
Pedal switch
	( size：8.3 X 8 x 3 cm ) ( with control wire : 150 cm )
	-

Model No.: CK-TC005-HS
Toggle switch
	( size：8.3 X 2 x 2 cm ) ( with control wire : 150 cm )
	-
